Power Maksimum 13.2 kW {18 PS} / 8,000 rpm Torsi Maksimum 18.0 Nm {1.8 kgfm} / 6,400 rpm Jenis Mesin Air-cooled, 4-stroke Single Volume Silinder 233 cc Diameter x Langkah 67.0 x 66.0 mm Perbandingan Kompresi 9.4:1 Sistem Katup SOHC, 2 valves Sistem Suplai Bahan Bakar Fuel injection: ø32 mm x 1 Sistem Pengapian Digital Start Electric Transmission 6-speed, return Primary Reduction Ratio 2.871 (89/31) Final Reduction Ratio 3.071 (43/14) Kopling Wet multi-disc, manual System Final Drive Type Chain

Tipe Rangka Perimeter, high-tensile steel Suspensi Depan ø37 mm inverted fork Suspensi Belakang New Uni Trak with adjustable spring preload Wheel Travel Depan 188 mm Wheel Travel Belakang 223 mm Sudut Putar / Trail 24.9° / 77 mm Roda Depan 110/70-17M/C 54P Roda Belakang 120/70-17M/C 58P Rem Depan ø300 mm semi-floating petal disc Kaliper Depan Twin-piston Rem Belakang ø220 mm petal disc Kaliper Belakang Single-piston

Panjang x Lebar x Tinggi 2,035 x 845 x 1,125 mm Jarak poros roda 1,365 mm Jarak ke Tanah 220 mm Tinggi Tempat Duduk 840 mm Kapasitas Bensin 7.6 litres Berat Kosong* 135 kg

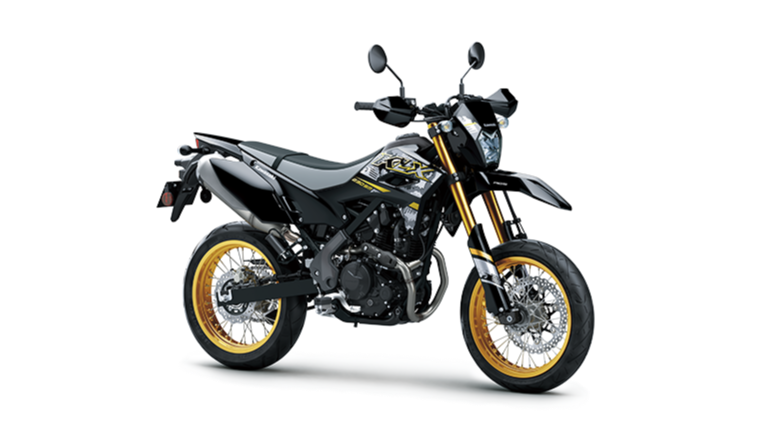

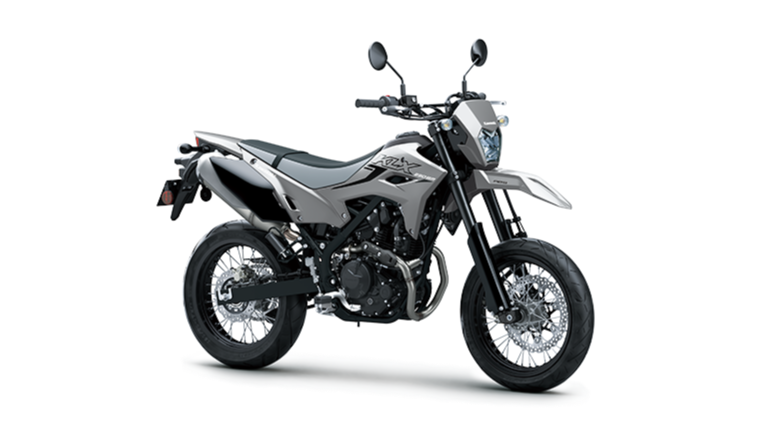

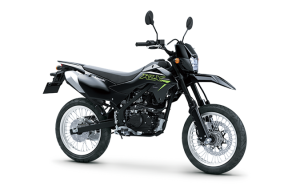

KLX 230 SM SE

Name: KAWASAKI BANDUNG AHMAD YANI
Price range: $$

GET OUT AND PLAY

UKURAN RODA

17"

VOLUME SILINDER

233 CC

KAPASITAS BENSIN

7,6 L

KLX 230 SM SE - NIK 2024

TUNAI

Rp 59.100.000,-

( OTR BANDUNG )

KREDIT

Rp 8.900.000,-

UANG MUKA

Keunggulan

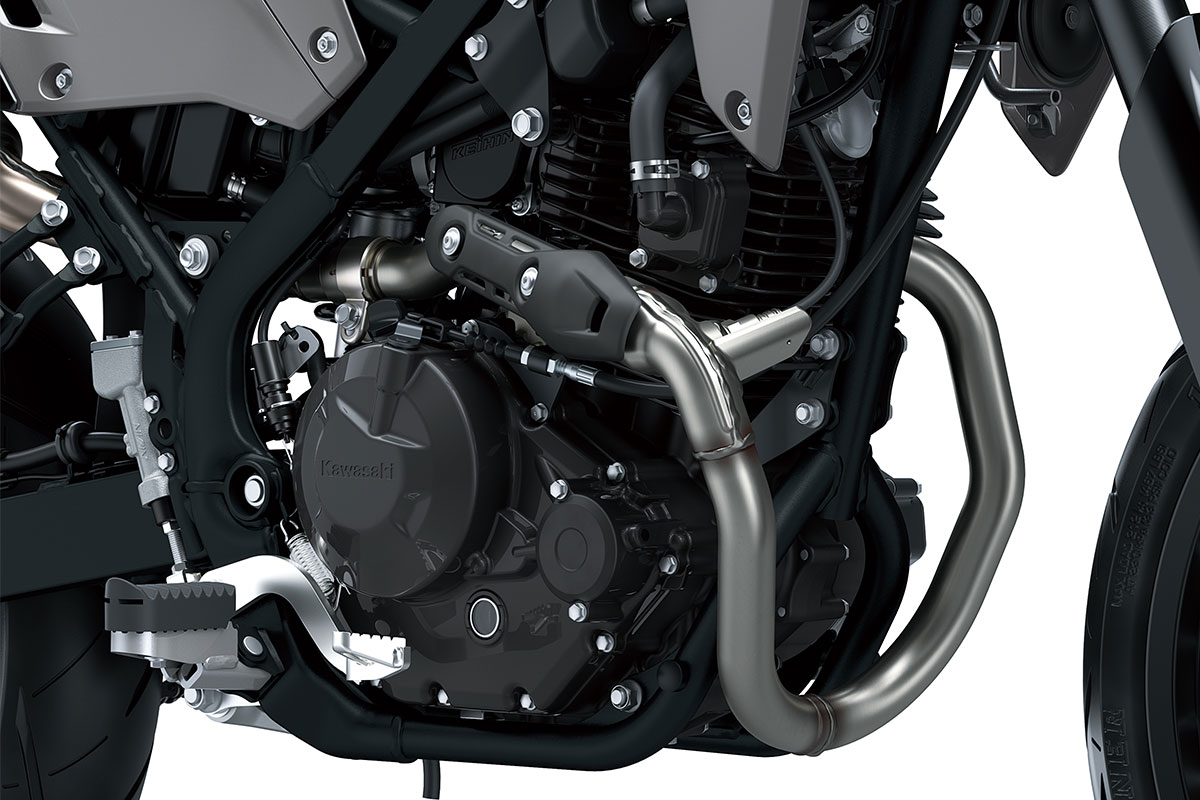

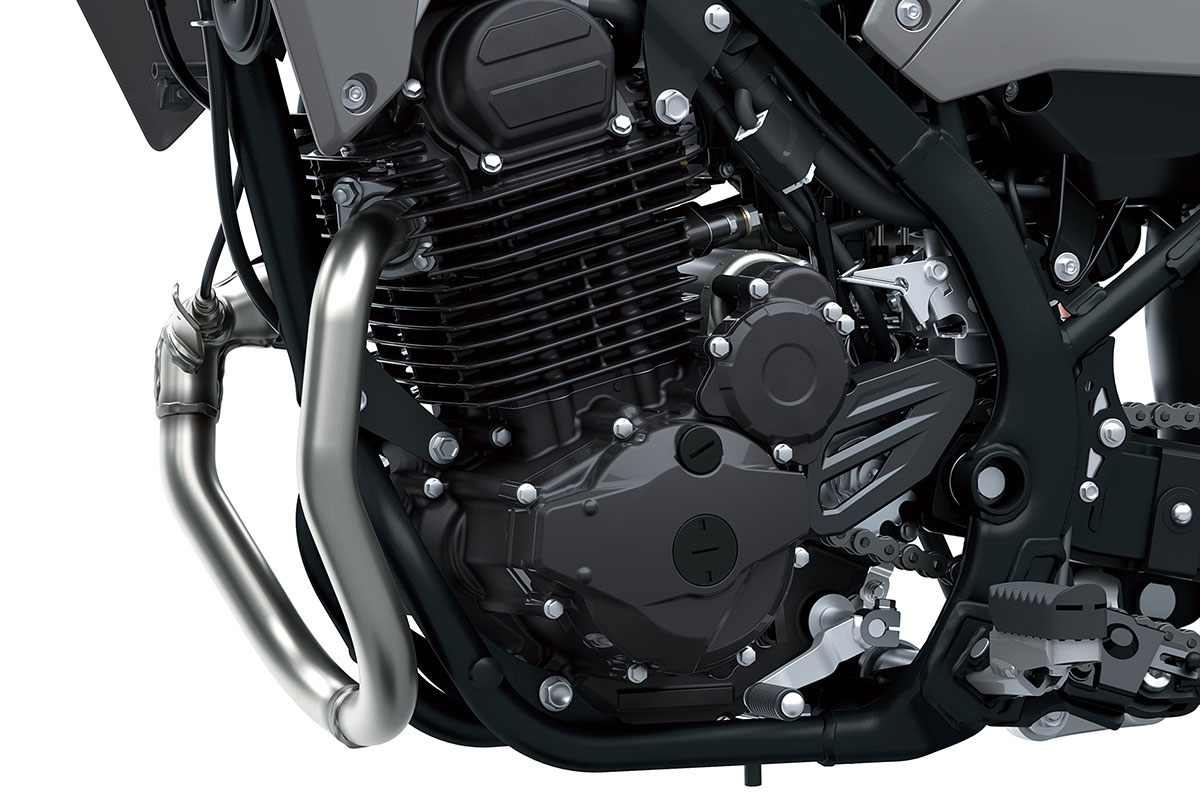

233 cc fuel-injected, air-cooled, four-stroke single with electric start
supermoto-tuned long-travel suspension
17” front & rear wheels with road tires

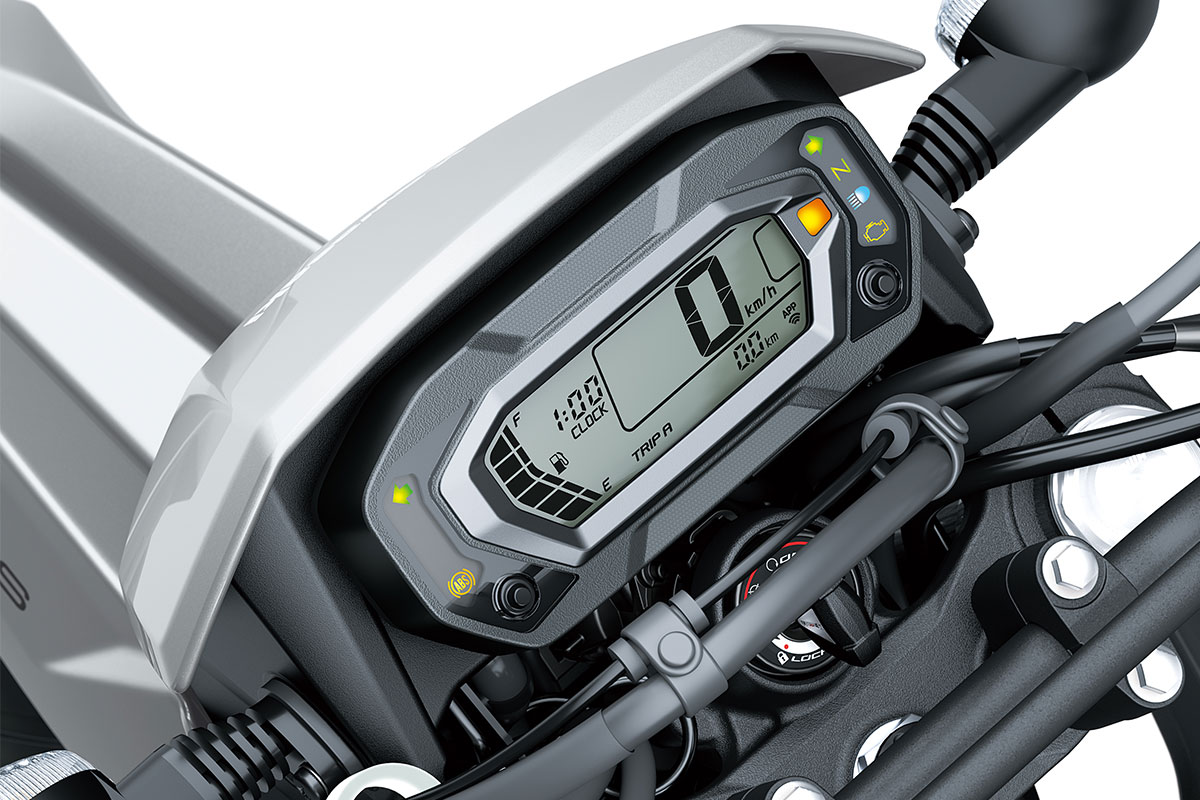

Smartphone Connectivity baru via RIDEOLOGY The App

fitur Tambahan

Gaya baru Supermoto yang sporty dan agresif

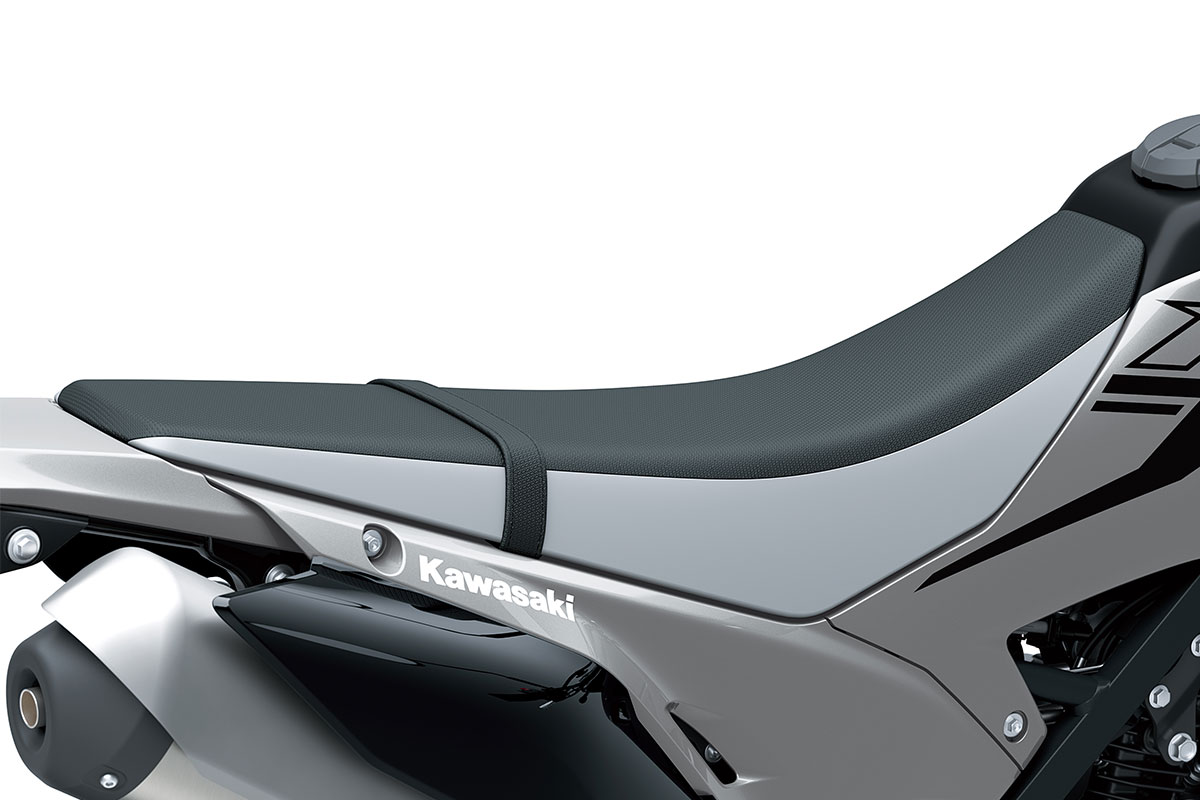

Tinggi kursi baru yang lebih tebal
Tinggi tempat duduk baru 840 mm

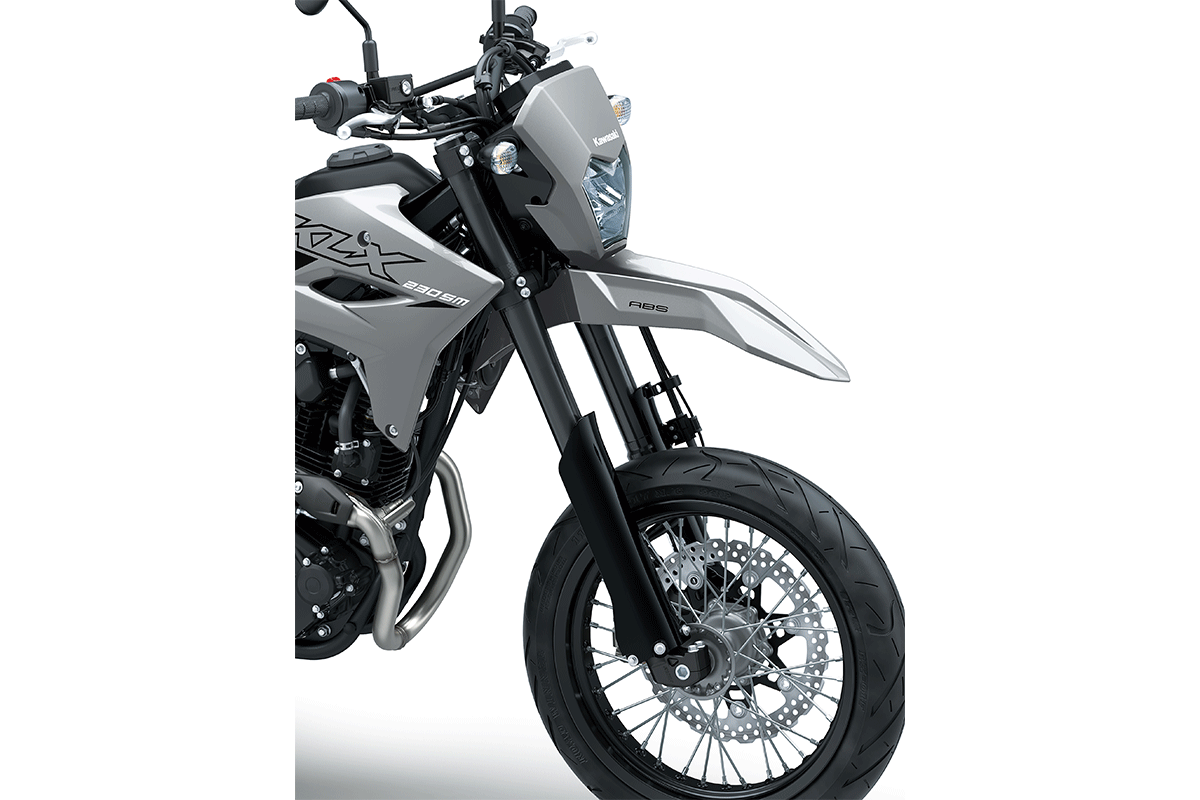

Rem cakram berdiameter besar yang bertenaga

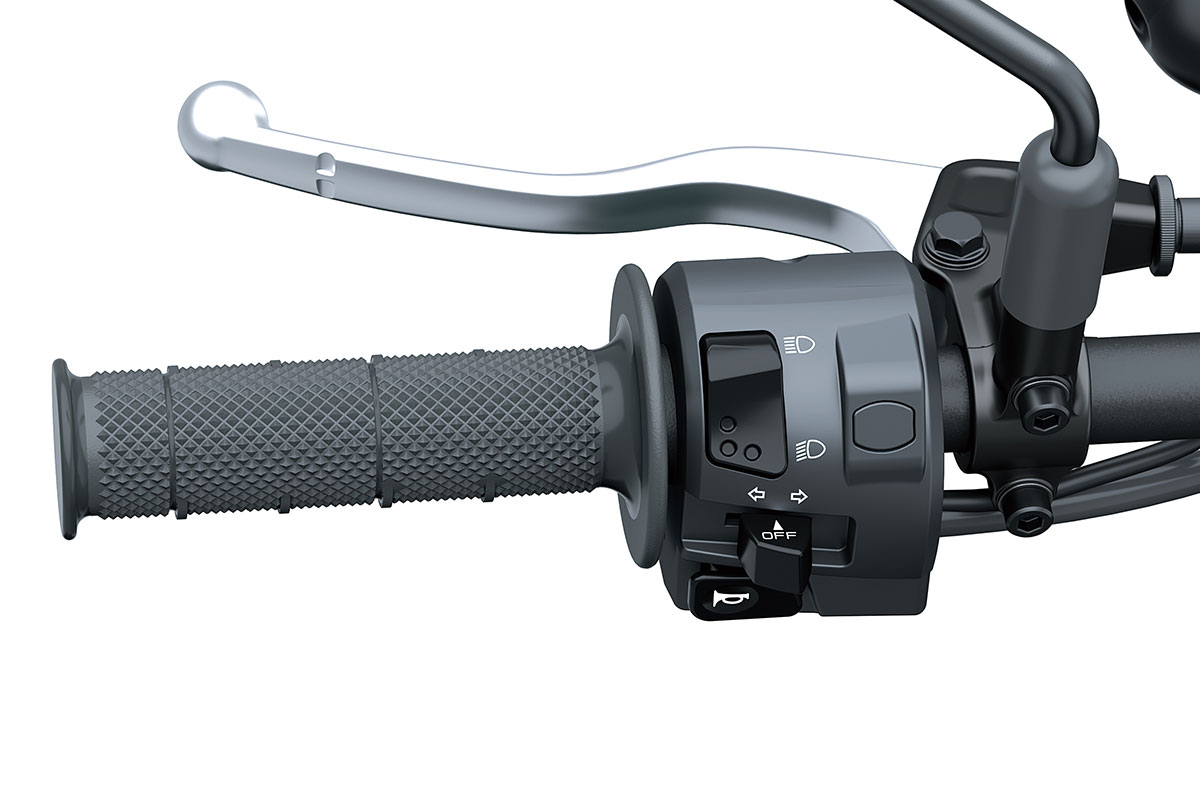

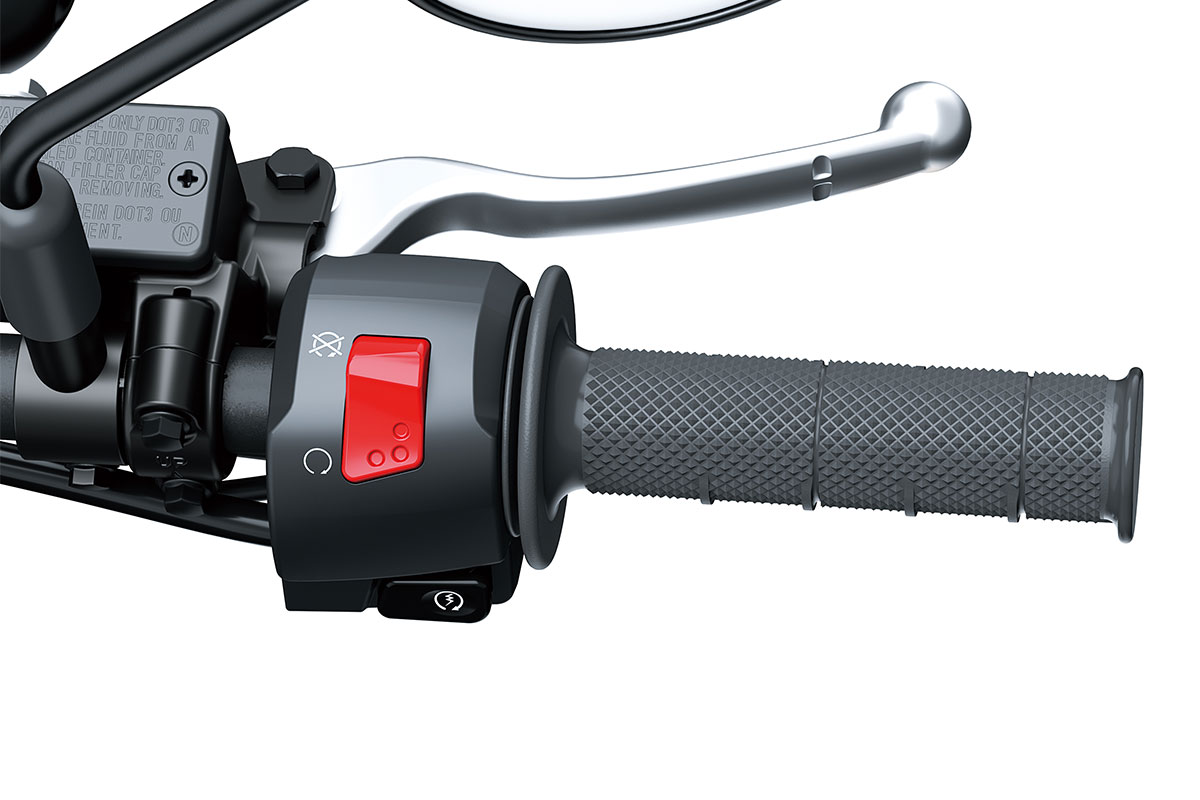

Tuas rem dan kopling baru yang lebih pendek

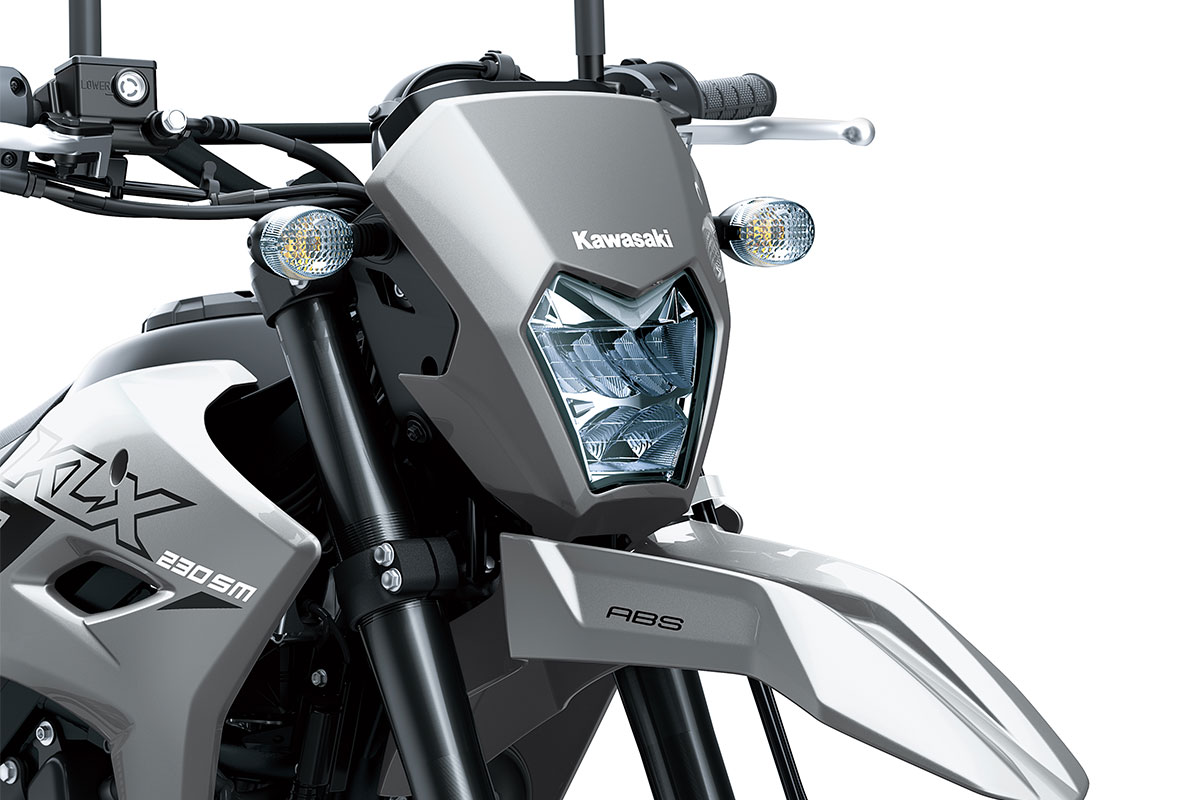

Lampu depan LED yang terang
Pelindung tangan

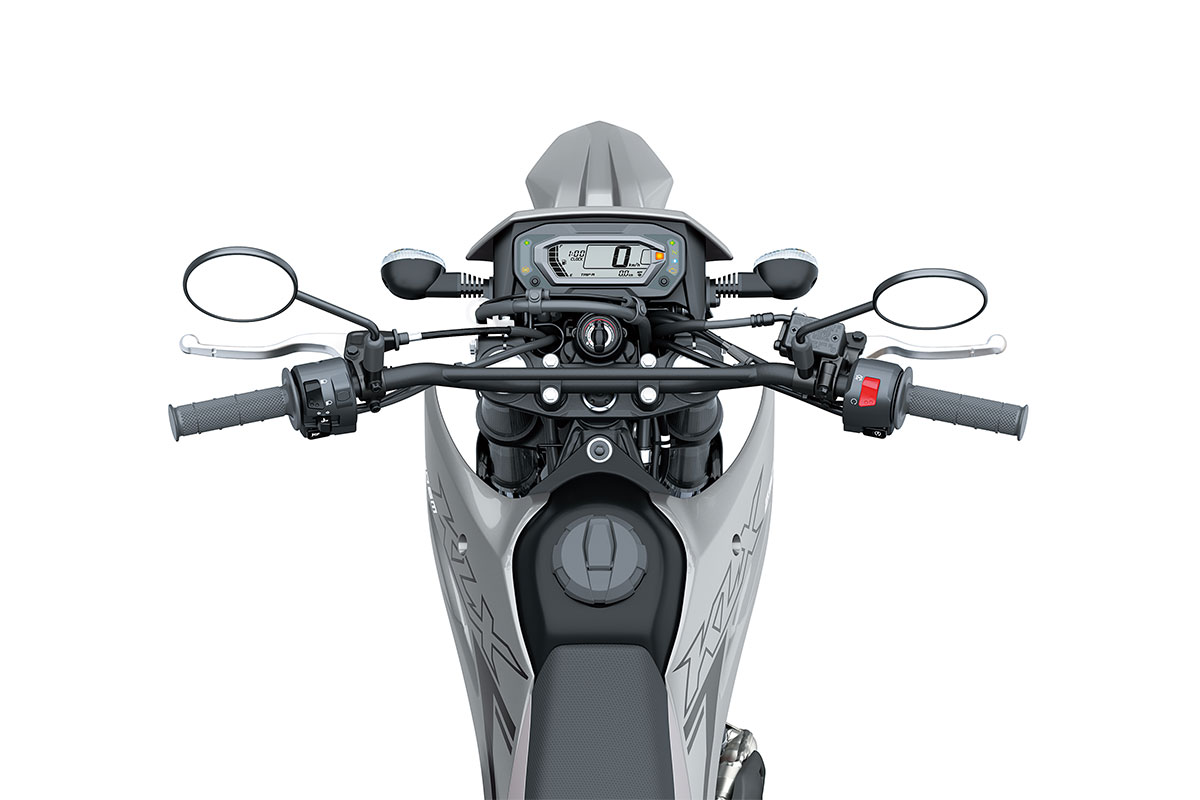

Stang tipe besar
Velg Alumite Hitam

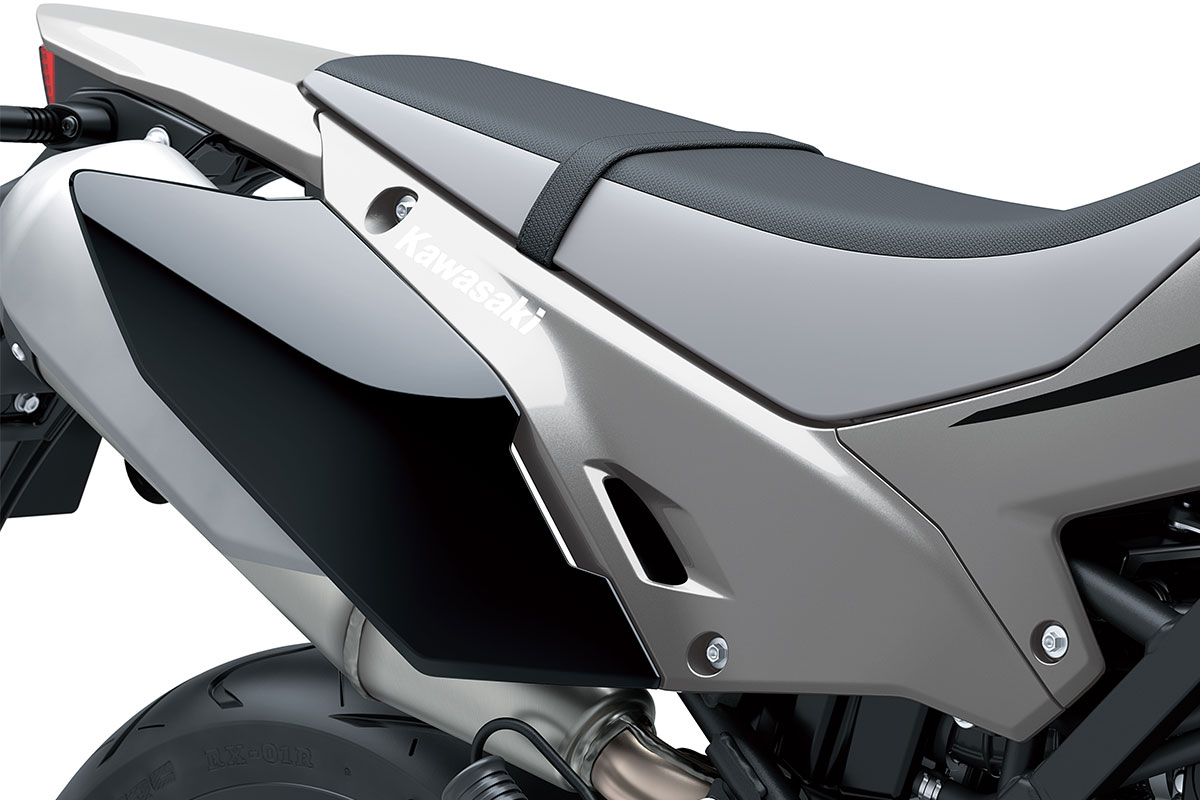

Pelindung frame dan skid plate

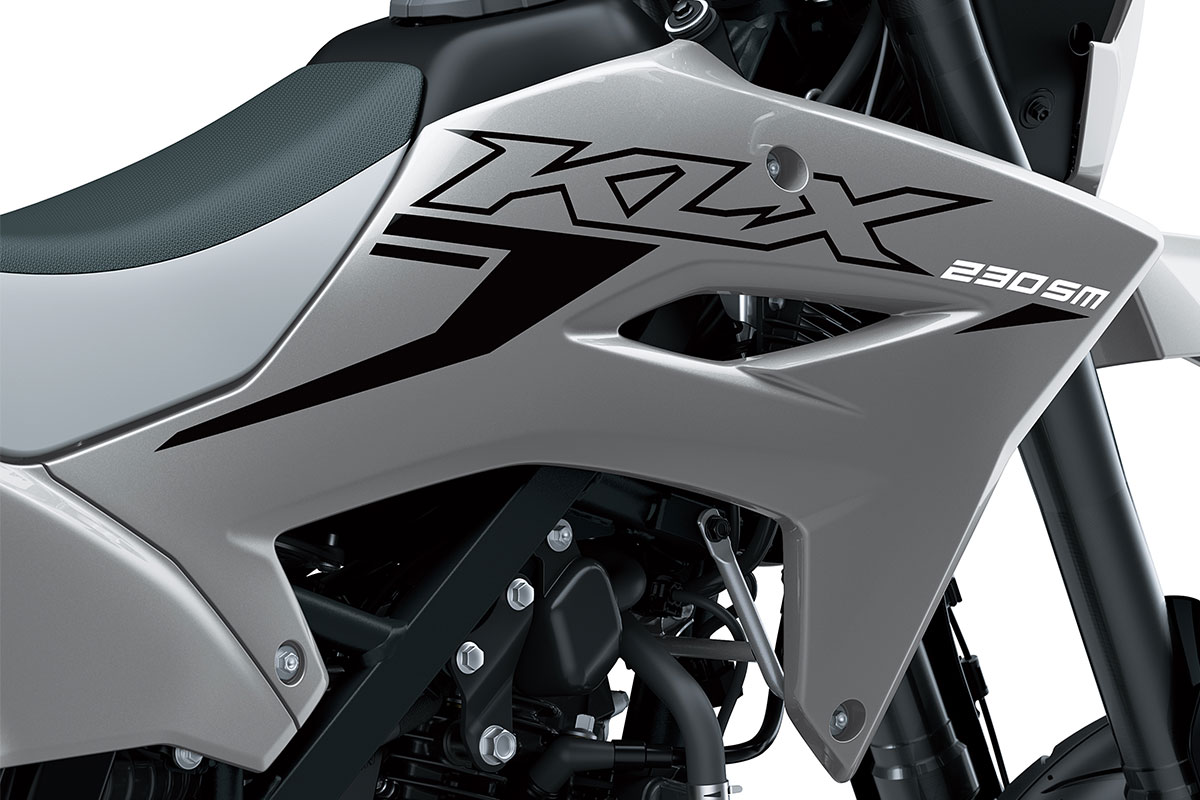

Warna dan grafis spesial edition

POWER

Power Maksimum	13.2 kW {18 PS} / 8,000 rpm
Torsi Maksimum	18.0 Nm {1.8 kgfm} / 6,400 rpm
Jenis Mesin	Air-cooled, 4-stroke Single
Volume Silinder	233 cc
Diameter x Langkah	67.0 x 66.0 mm
Perbandingan Kompresi	9.4:1
Sistem Katup	SOHC, 2 valves
Sistem Suplai Bahan Bakar	Fuel injection: ø32 mm x 1
Sistem Pengapian	Digital
Start	Electric
Transmission	6-speed, return
Primary Reduction Ratio	2.871 (89/31)
Final Reduction Ratio	3.071 (43/14)
Kopling	Wet multi-disc, manual
System Final Drive Type	Chain

PERFORMANCE

Tipe Rangka	Perimeter, high-tensile steel
Suspensi Depan	ø37 mm inverted fork

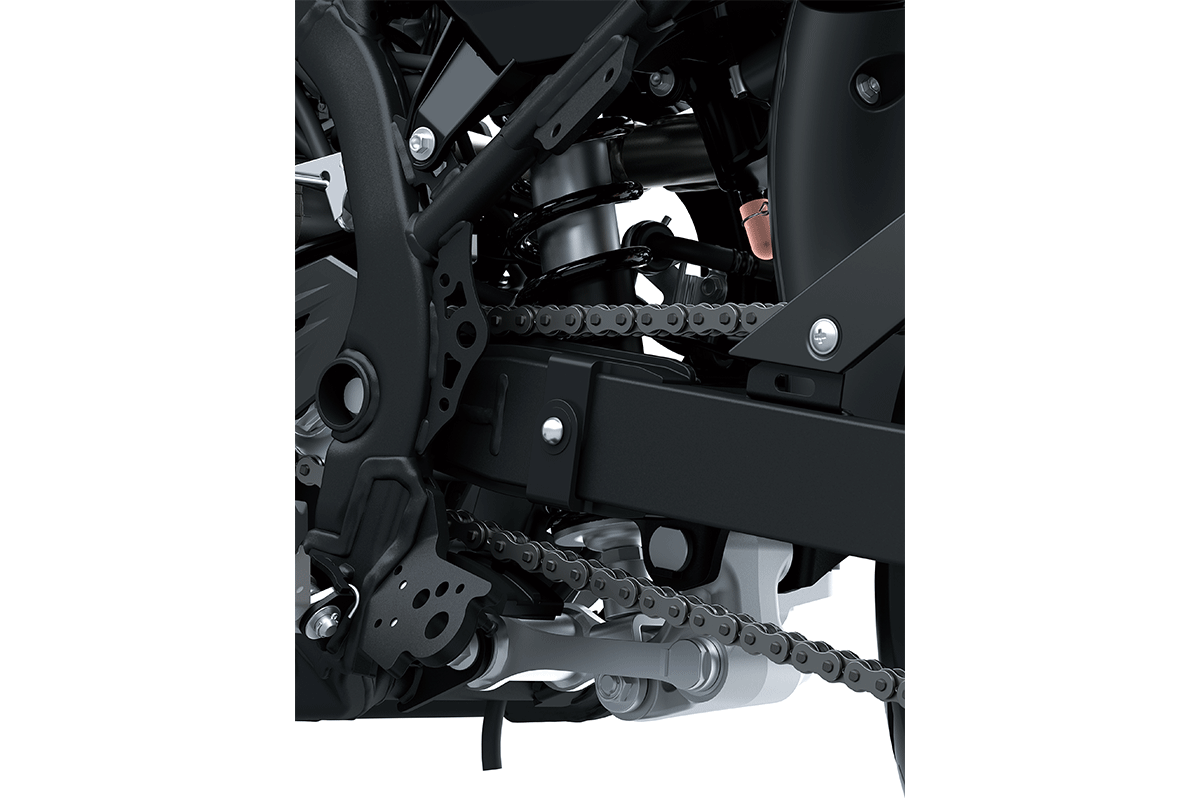

Suspensi Belakang	New Uni Trak with adjustable spring preload
Wheel Travel Depan	188 mm
Wheel Travel Belakang	223 mm
Sudut Putar / Trail	24.9° / 77 mm
Roda Depan	110/70-17M/C 54P
Roda Belakang	120/70-17M/C 58P
Rem Depan	ø300 mm semi-floating petal disc
Kaliper Depan	Twin-piston
Rem Belakang	ø220 mm petal disc
Kaliper Belakang	Single-piston

DETAILS

Panjang x Lebar x Tinggi	2,035 x 845 x 1,125 mm
Jarak poros roda	1,365 mm
Jarak ke Tanah	220 mm
Tinggi Tempat Duduk	840 mm

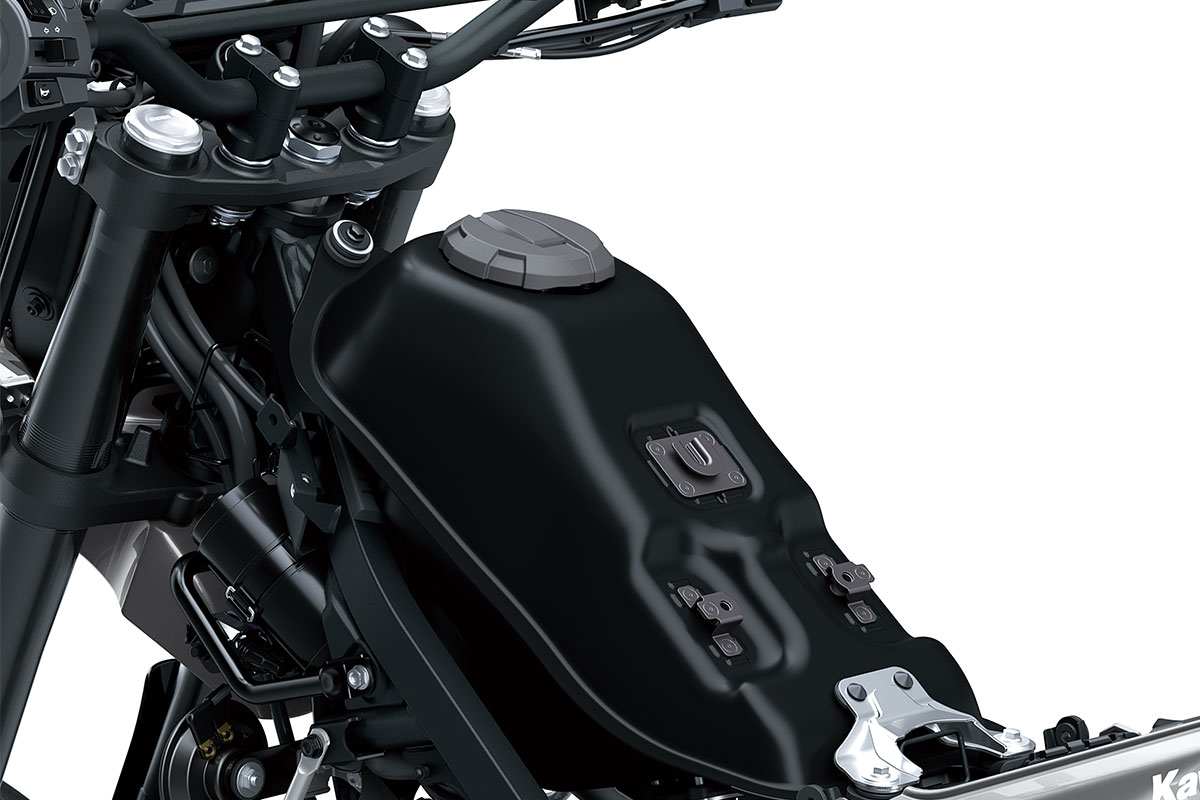

Kapasitas Bensin	7.6 litres
Berat Kosong*	135 kg
